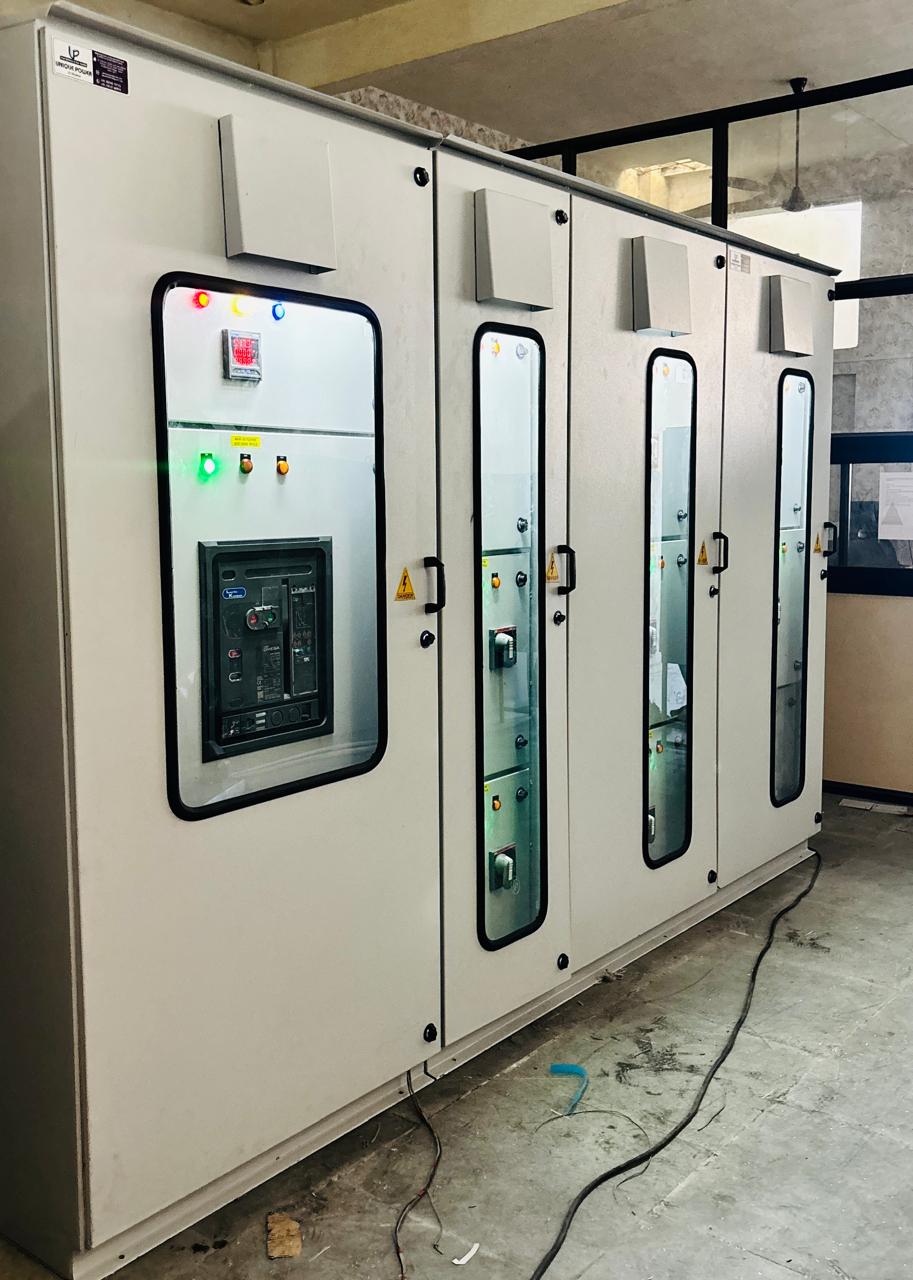

Solar ACDB 800V
"Where Solar Power Meets Secure Distribution."U-POWER.
Introduction to Solar ACDB
In the world of solar energy systems, Solar ACDB 800V is a critical component that ensures smooth, efficient, and safe distribution of electricity from your inverter to the load or grid. ACDB stands for Alternating Current Distribution Box, and its primary function is to manage the flow of AC power in a photovoltaic (PV) system.
It acts as a safety net, providing overcurrent and short-circuit protection, while also helping in monitoring and controlling AC output. Whether you’re setting up a rooftop system or a large-scale solar farm, understanding the function of an 800V ACDB is essential for reliable and durable operation.
Understanding the 800V Specification
An ACDB rated at 800 volts is designed to handle high-voltage alternating current, typically used in large-scale solar systems. But what does that mean?
Voltage Ratings Explained: The voltage rating determines how much electrical pressure the device can handle. An 800V ACDB is suitable for systems where the AC output voltage is high, which is common in utility-scale or commercial installations.
Why 800V Matters: Higher voltage reduces current, which leads to lower cable losses and improved efficiency. It’s ideal for reducing costs in large installations, especially those involving centralized inverters or three-phase outputs.
Key Components of a Solar ACDB
A typical Solar ACDB 800V includes:
MCBs (Miniature Circuit Breakers): Protect against overloads and short circuits.
MCCBs (Molded Case Circuit Breakers): Handle higher capacity loads.
ACB ( Air Circuit Breaker ):Handle higher current load .
SPD (Surge Protection Devices): Defend against lightning or voltage spikes.
Energy Meters: For monitoring output power.
Terminal Blocks and Connectors: For safe and secure wiring.
Each of these parts plays a role in ensuring safety, efficiency, and performance.
Functions and Role of Solar ACDB
The ACDB is not just a junction box—it’s a multifunctional safety device:
Distribution: It distributes power from the inverter to different load points.
Protection: Built-in breakers protect your equipment and property.
Monitoring: With energy meters, it helps in real-time data collection.
It also facilitates safe maintenance operations through isolation switches, allowing disconnection of the power supply during servicing.
Types of Solar ACDB Panels
Solar ACDBs come in various formats:
Single-phase vs. Three-phase: For residential and industrial applications respectively.
Indoor vs. Outdoor: IP-rated enclosures ensure protection against dust and water, especially in outdoor settings.
For an 800V system, three-phase panels are usually preferred to match the power output of high-capacity inverters.
Installation Guidelines
Proper installation is key:
Location: Install near the inverter for better safety and accessibility.
Mounting: Use wall-mounted or floor-standing panels as required.
Wiring: Ensure cables are rated for the voltage and current, with proper earthing and insulation.
Always hire licensed professionals and follow the manufacturer’s manuals.
Safety Features and Protections
The Solar ACDB 800V is designed with safety as its core:
Overload Protection: MCBs/MCCBs cut off the power when the load exceeds the limit.
Short Circuit Safety: Rapid disconnection helps prevent damage.
Surge Protection: SPDs guard against lightning or switching surges.
Earthing: Ensures safe dissipation of any leakage currents.
These features are non-negotiable for safe operation and compliance with electrical codes.
Standards and Certifications
Look for compliance with:
IEC 61439-2 (for LV switchgear and controlgear assemblies)
IS/IEC 60947 standards for circuit breakers and SPDs
Manufacturer’s Certifications: Ensure factory QA and testing reports are available.
Certified products reduce the risk of system failure and simplify regulatory approvals. Cost and Sizing Considerations
The price of a Solar ACDB 800V depends on:
Rated current capacity (Amps).
Number of inverters/load circuits.
Protection components included.
Brand and build quality. Case Study: Industrial Solar Setup
. System size- 5 MVA Project Location – Sagar
ACDB Used: 800V, 3200A, 3-phase panel by L&T
. System size-3MVA project Location -Hyderabad.
ACDB Used: 800V, 2000A, 3-phase panel by L&T.
.System size -2.5 MVA project Location-Gyanoday Group
ACDB Used: 800V, 2000A, 3-phase panel by ABB.
.System size- 1MVA project Location-Artha Group.
ACDB Used: 800V, 1000A, 3-phase panel by L&T
Key Features of UNIQUE POWER’s Solar ACDB 800V Panels
- High Voltage Compatibility: Designed to support inverter architectures with voltage ratings up to 800V, reducing transmission losses and cabling costs.
- Robust Protection: Equipped with MCCBs (Molded Case Circuit Breakers), MCBs (Miniature Circuit Breakers), and SPDs (Surge Protection Devices) to safeguard the system against faults and surges.
- Customizable Designs: Tailored solutions to meet specific project requirements, including indoor and outdoor configurations.
- Durable Construction: Built to withstand harsh environmental conditions, ensuring longevity and reliability.
- Compliance with Standards: Manufactured in accordance with national and international standards, ensuring quality and safety.
Solar ACDB 800V is also knows as High voltage AC distribution board ,Solar power distribution panel ,Inverter protection panel ,Customized solar ACDB solutions ,ACDB with surge protection, Durable solar ACDB panel, Solar energy protection device ,Solar inverter protection panel ,Reliable ACDB for solar installations.
Why Choose UNIQUE POWER?
- Expertise: With years of experience in the solar energy sector, we understand the intricacies of electrical systems.
- Quality Assurance: Our panels undergo rigorous testing to ensure durability and performance.
- Customer-Centric Approach: We provide tailor-made solutions to meet specific requirements.
- Timely Delivery: We value your deadlines and ensure on-time delivery.
- After-Sales Support: Comprehensive assistance post-installation.
Conclusion and Final Thoughts
Choosing the right Solar ACDB 800V is a strategic decision that affects safety, efficiency, and cost. From centralized rooftops to industrial-scale solar projects, the 800V panel ensures optimal power distribution while safeguarding equipment and people.
Ensure your ACDB is well-sized, certified, and installed by professionals. This investment will pay off in reliability, performance, and peace of mind.
